Product overview

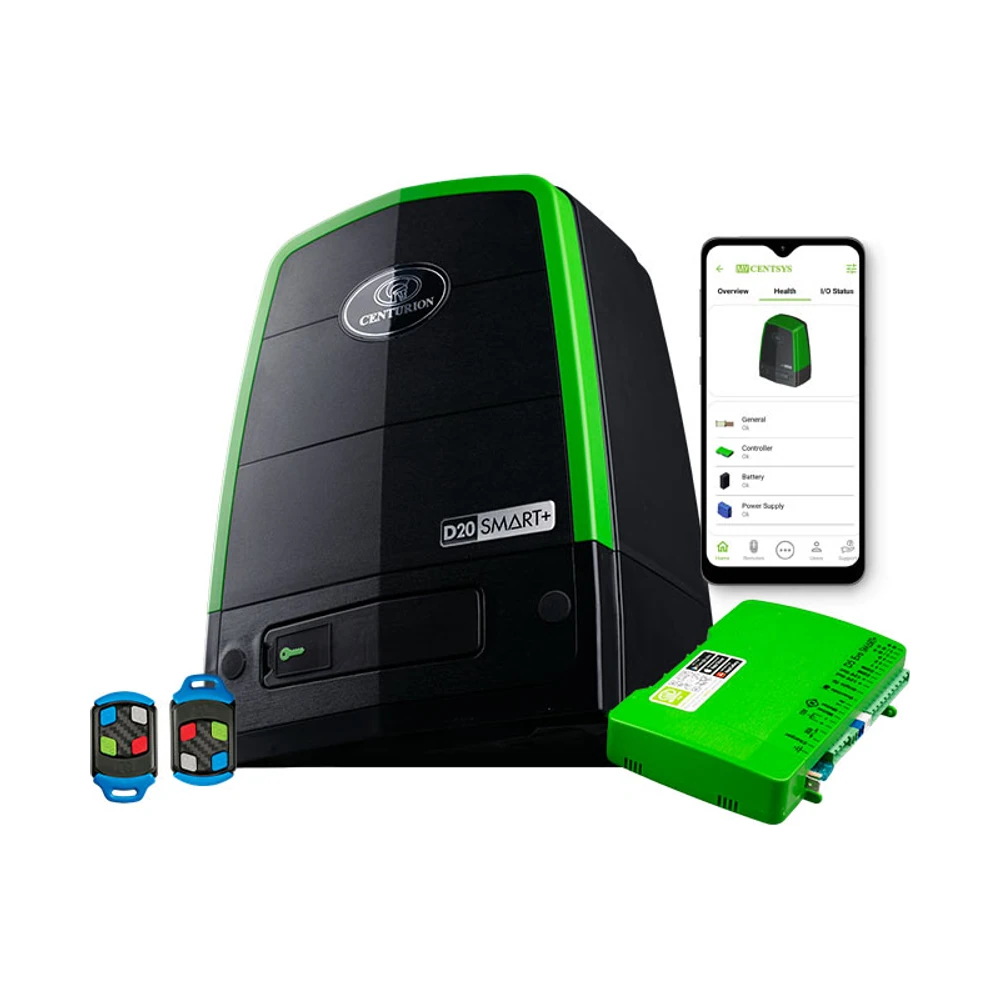

The CENTURION D20 SMART+ is the heavy-duty industrial sliding gate operator in the connected SMART+ range. It is engineered for demanding commercial and industrial entrances where high torque, consistent uptime, remote visibility and dependable battery-backed operation are essential.
This listing replaces the discontinued D20 SMART model. Exact kit contents, batteries, gate rack, theft-deterrent cage and accessories can vary by package. Confirm the supplied configuration with Anchor Doors before ordering.
Key features
- Built-in BLE and 2.4GHz Wi-Fi connectivity
- Remote gate status, control, health information and support through the SMART+ ecosystem
- Wireless commissioning and diagnostics through MyCentsys Pro
- Electronic collision sensing and accurate position control
- Six configurable accessory inputs/outputs
- Lockable manual override with key release
- Onboard 433.92MHz code-hopping multichannel receiver
- 24V battery-driven operation during mains interruptions
Technical specifications
- Application: heavy industrial and commercial
- Maximum gate mass: 2000kg
- Maximum gate length: 25m, subject to the required push force and installation conditions
- Gate speed: up to 18m/min; rated speed up to 16m/min
- Starting push force: 52kgf; rated push force: 39kgf
- Input: 110-240V AC, 50/60Hz
- Motor supply: 24V battery-driven system; standard capacity 2 x 12V 7Ah batteries
- Maximum operations per day: 750 under the manufacturer’s stated conditions
- Wireless communication: BLE and Wi-Fi (2.4GHz)
- Receiver: 433.92MHz code-hopping, capacity up to 1500 remotes
- Operating temperature: -15°C to +50°C
- Environmental protection: IP54
- Operator dimensions: approximately 390mm high x 295mm wide x 205mm deep
- Packed mass: approximately 13kg, excluding rack and batteries
- Packaging: approximately 350mm wide x 282mm deep x 470mm high
Official documentation
A gate of this capacity requires professional structural, mechanical and electrical assessment. Gate suitability and installation requirements must be confirmed before purchase.
