Product overview

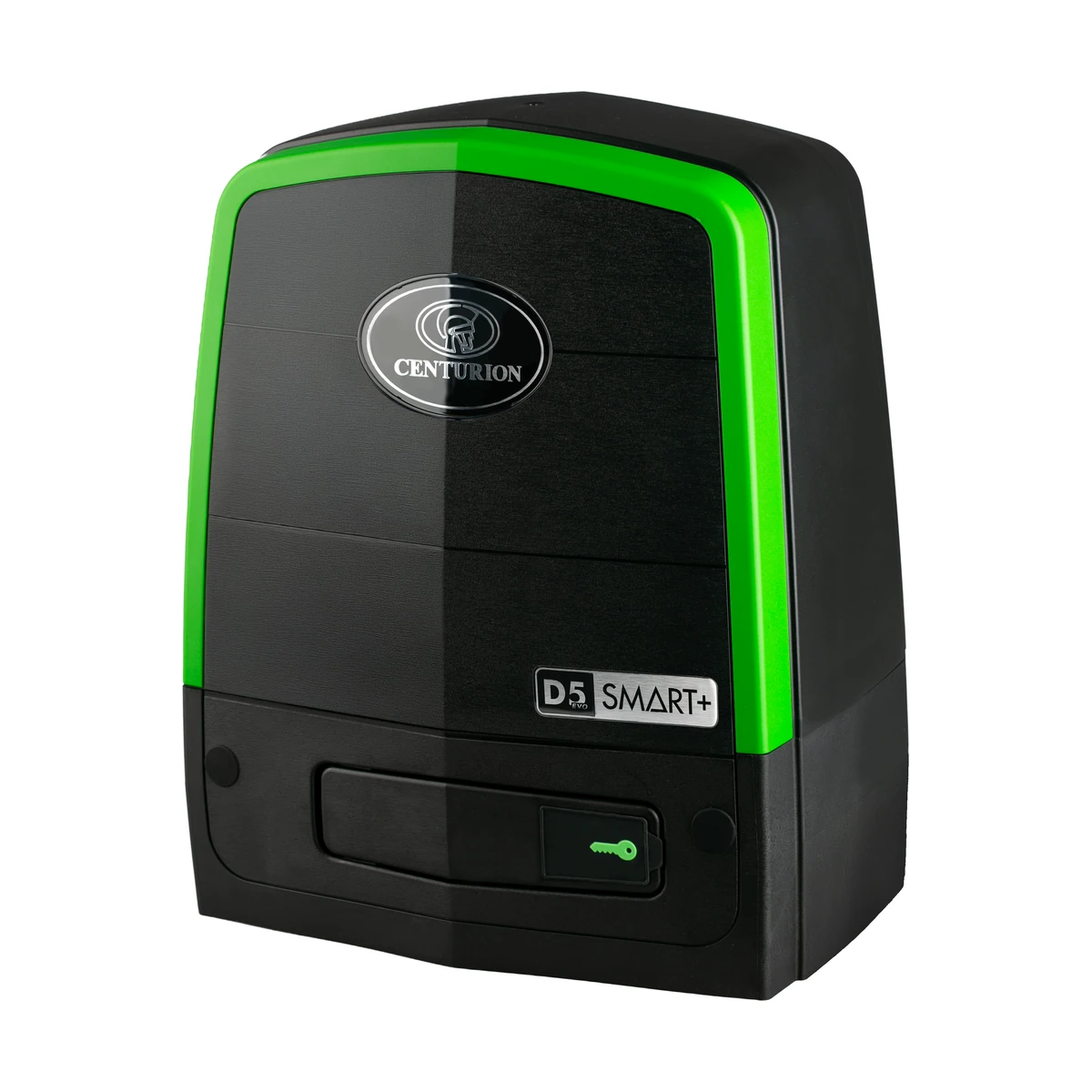

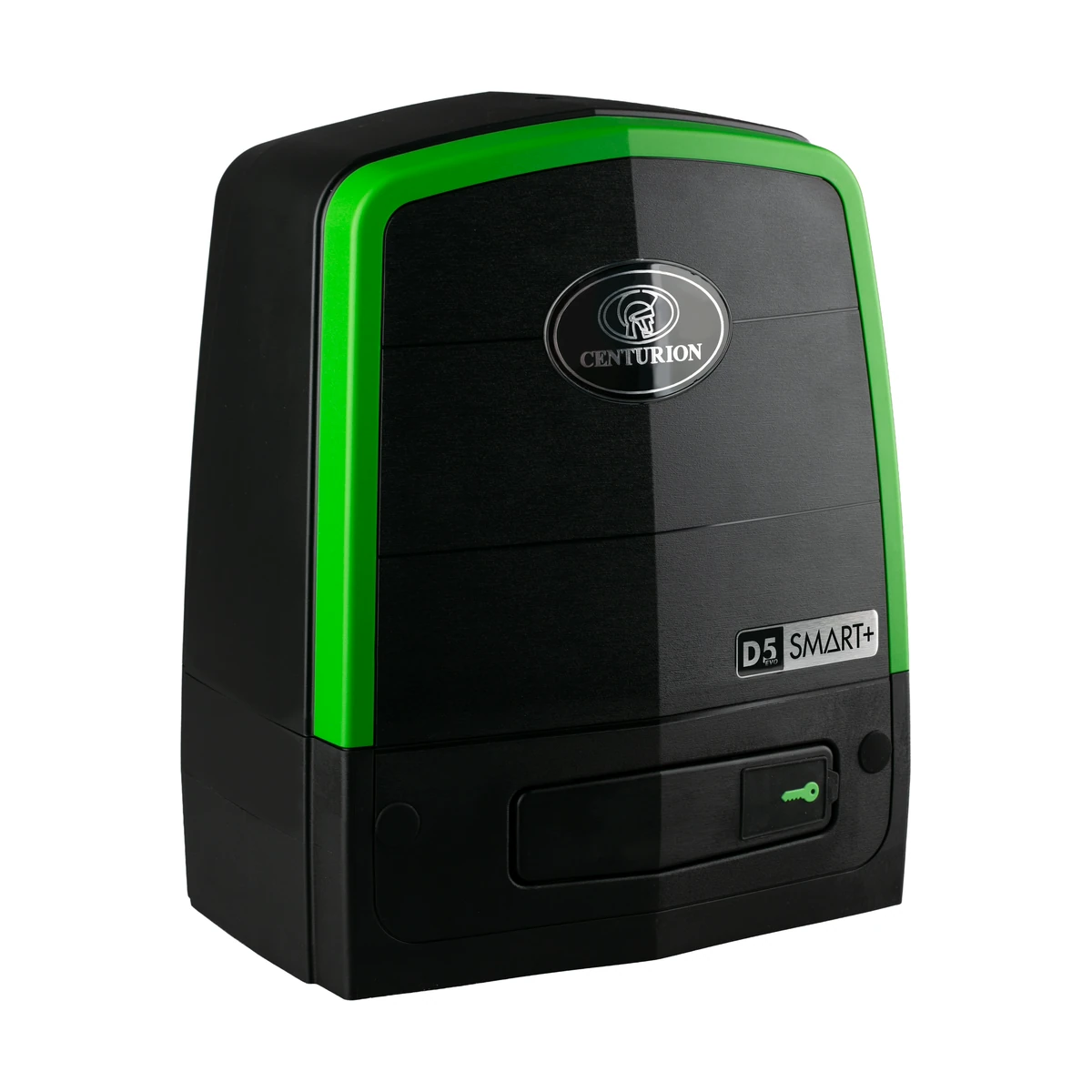

The CENTURION D5 EVO SMART+ is a connected, battery-driven sliding gate operator for residential and light-industrial gates. It combines dependable access during power interruptions with always-on SMART+ connectivity, remote visibility and streamlined commissioning through the MyCentsys apps.

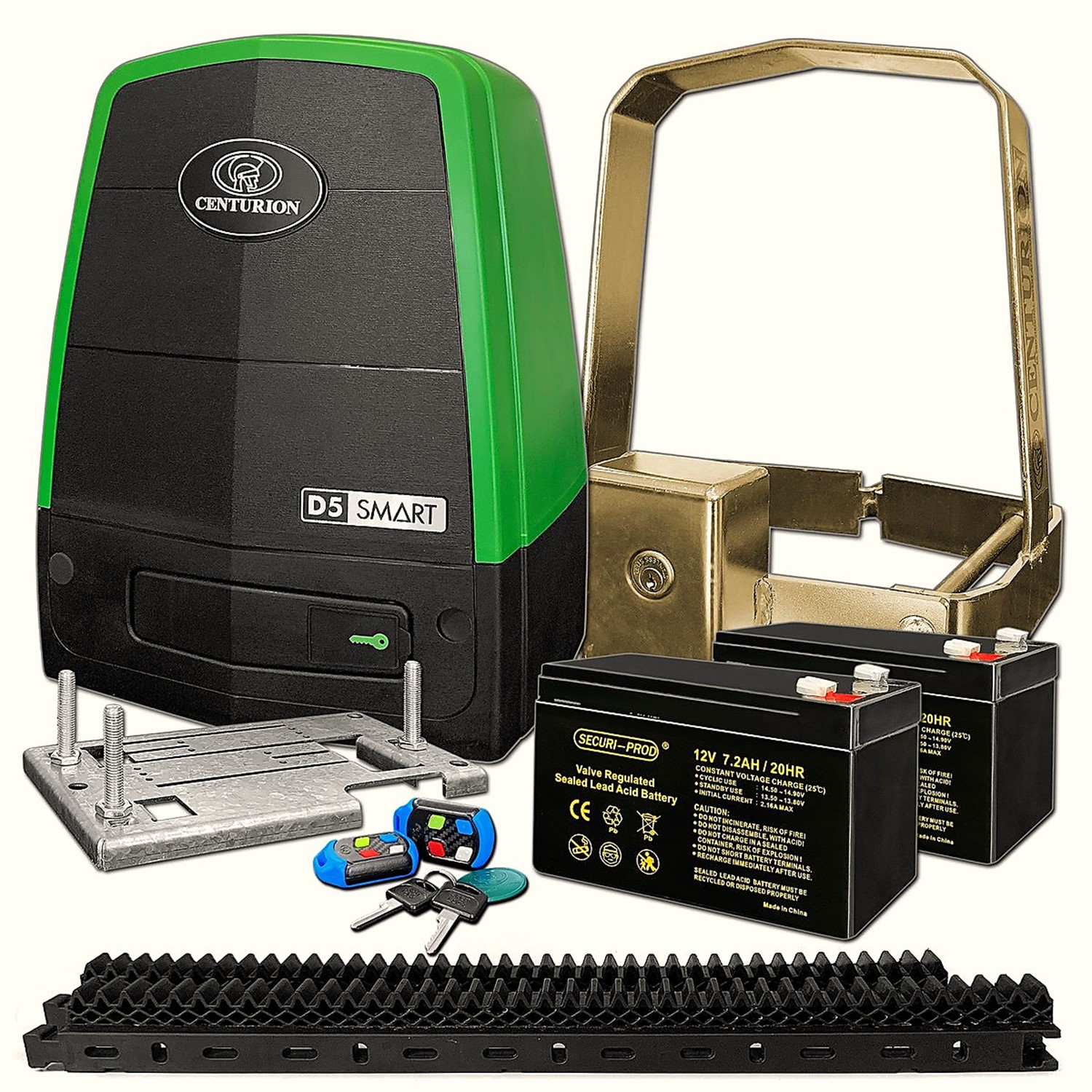

This listing replaces the discontinued D5 EVO SMART model. Exact kit contents, battery, gate rack, theft-deterrent cage and accessories can vary by package. Confirm the supplied configuration with Anchor Doors before ordering.
Key features
- Built-in BLE and 2.4GHz Wi-Fi connectivity
- Remote gate status, control and support through the SMART+ ecosystem
- Wireless setup, diagnostics and configuration through MyCentsys Pro
- Electronic collision sensing with adjustable operating profiles
- Lockable manual override with key release
- Onboard 433.92MHz code-hopping multichannel receiver
- Battery-driven operation for continued access during mains interruptions
Technical specifications
- Application: residential and light industrial
- Maximum gate mass: 500kg
- Maximum gate length: 20m, subject to the required push force and installation conditions
- Gate speed: up to 24m/min; rated speed up to 19m/min
- Starting push force: 30kgf; rated push force: 17kgf
- Input: 110-240V AC, 50/60Hz
- Motor supply: 12V battery-driven system; standard capacity 1 x 12V 7Ah battery
- Maximum operations per day: 150 under the manufacturer’s stated conditions
- Wireless communication: BLE and Wi-Fi (2.4GHz)
- Receiver: 433.92MHz code-hopping, capacity up to 1500 remotes
- Operating temperature: -15°C to +50°C
- Environmental protection: IP55
- Operator dimensions: approximately 333.5mm high x 275mm wide x 181mm deep
- Packaging: approximately 325mm wide x 245mm deep x 395mm high
Official documentation
Gate suitability and installation requirements must be confirmed before purchase. Professional installation is recommended for powered access-automation equipment.
