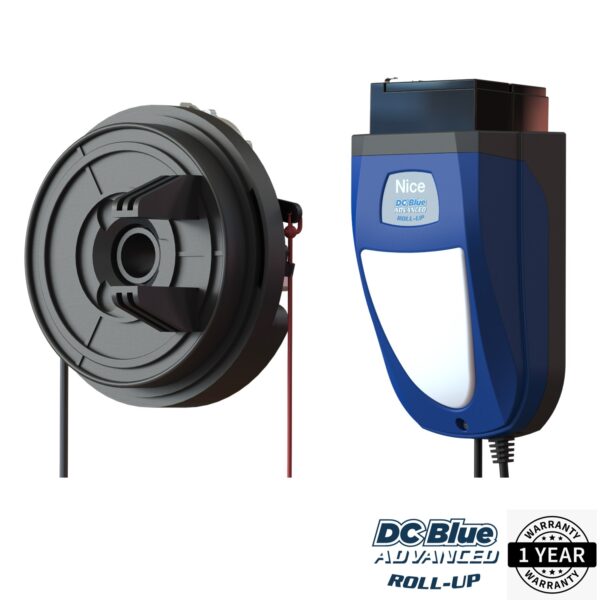

Nice DC Blue Advanced Roll-Up
A dedicated operator for spring-balanced, one-piece Aluzinc or Cromadek roll-up garage doors. It uses a separate control unit and continues to operate from the transformer when the backup batteries are unavailable.
Key Features
- Electronic door-load profiling
- True battery backup
- ET Blu Mix rolling-code receiver
- Courtesy light, holiday lock-out and outputs for compatible safety devices
Technical Specifications
| Maximum door area | 8m² |
|---|---|
| Rated running load | 40Nm |
| Maximum pulling force before safety governing | 55Nm |
| Rated speed | 8m/min |
| Maximum daily duty | 25 cycles per 24 hours, at no more than 5 per hour |
| Battery reserve | Up to 50 operations within 24 hours from a healthy, fully charged pair of 1.2Ah batteries |
| Receiver | 433.92MHz; 31 users; 4 channels |
Package
Complete DC Blue Advanced Roll-Up kit as listed. Please confirm the included battery and transmitter configuration with Anchor Doors if it is not shown in the selectable options.
Manuals & Downloads
Installation note: Correct sizing, door or gate condition, safety devices and professional installation affect performance and warranty. Contact Anchor Doors if you need help confirming suitability.
